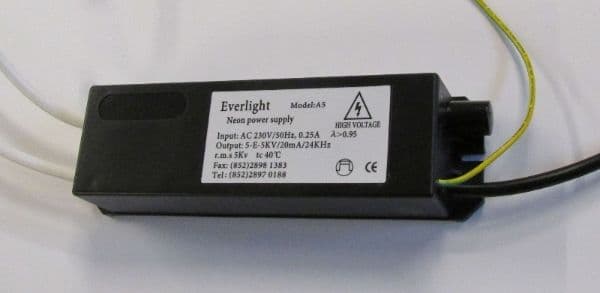

Ever Light Transformer (High Voltage) 5kV 25mA neon power supply with built in earth leakage, open circuit protection and dimming switch 0 to 100%. Perfect for neon signs and cold cathode tubes.
Constant current output - allows a wide range of tube lengths to be operated at consistent brightness levels
- 40°C Ambient temperature rating - ensures long reliable life under most operating conditions
- Comprehensive safety protection - unit shuts down on earth leakage and open circuit fault conditions
- Jelly bean inhibitor - eliminates patterning in neon tubes
- High efficiency - over 35% improvement in total sign system efficiency compared with conventional transformers
- Slim profile - enables installation in tight spaces, and low visual impact
- Perfect transformer for Beer neon sign from amaerica/usa or standard UK Beer, open neon signs!
- In line switch on cable.
Input Voltage: 230 / 240 V
Input Current: 0.25 A
Input Frequency: 50
Power Factor > 0.95
Output Voltage: 5kV
Output Current: 20 mA
Output Frequency: 24kHz
Height: 40mm mm
Length: 190 mm
Depth : 55 mm
Weight: 2.3 kg
Unfortunately we cannot accept any exchange request or returns on wrongly ordered neon transformers so make sure you are ordering the right voltages and amperage. If you are not sure about the details please send us a picture of the old transformer data label.
Keywords for this transformer : Neon Transformer, Neon Power Supply, Dimmable neon transformer.
Please choose quantity and delivery options from the checkout area.
Find Code : EVERLIGHT2
