Matel Neon Resin Transformer

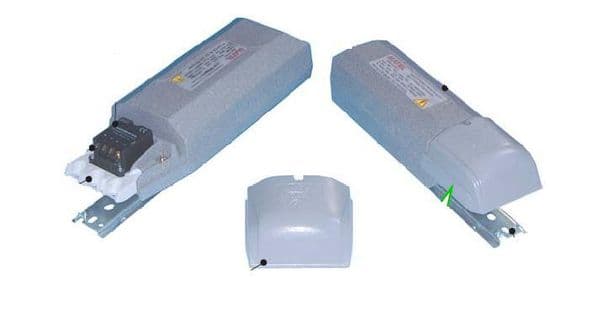

Matel Neon Transformer Earth trip, mains and HT cable connections all housed under magnetically connected lid. This is situated at one end of the unit to avoid heat transfer damage from body of the transformer to the earth trip device. Neon Power Supply.

• Matel model plus External Resin Transformer
• Integrated earth trip is compatible with flashers and dimmers
• Manufactured in accordance with EN61050
• Weather protection index = IP44
• For Internal or external use
• 1 Year manufacturers Guarantee
• Excellent build quality that can run upto 12mtr of neon/argon glass tubes (approx).
• Available from 1,000 upto 10,000volts 25 to 100 milli amp transformer - (Pulls aprox 1 amp).
• These are high voltage transformers and should be installed/connected by a certified electrician.
• Runs from 230v mains power supply.
• For use with standard neon tubes and cold cathode tube lighting.

Matel Neon Transformer volts size

1kv (1000volts)-25/35/50/75ma

1.5kv (1500volts)-25/35/50ma

2kv (2000volts)-25/35/50/75ma

2.5kv (2500volts)-25/35/50ma

3kv (3000volts)-25/35/50/75/100ma

4kv (4000volts)-25/35/50/75/100ma

5kv (5000volts)-25/35/50/75/100ma

6kv (6000volts)-25/35/50/75/100ma

7kv (7000volts)-25/35/50/75/100ma

8kv (8000volts)-25/35/50/75/100ma

9kv (9000volts)-25/35/50/75/100ma

10kv (10,000volts)-25/35/50/75/100ma


Unfortunately we cannot accept any exchange request or returns on wrongly ordered neon transformers so please consider the following:

1) always check the exact correspondence of the plate with that of your faulty transformer even if yours is from another brand, the values must match.
2) where you see the red line on the plate is the production date.
3) if you have technical doubts before buying, contact us.
4) if you have not found the value you need among those published, do not hesitate to send us the photo by email.
The tests, assembly and assistance of illuminated signs must be carried out by qualified personnel, making sure that the installation and all the materials used comply with local safety regulations and standards in force.
